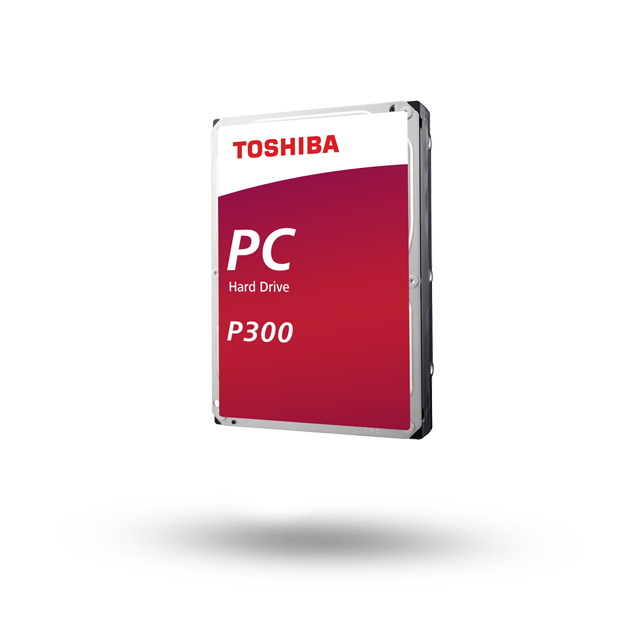

P300 Desktop PC Hard Drive

Performance that meets demands

Toshiba’s 3.5-inch P300 Desktop PC Hard Drive delivers a high performance for everyday home or office computing needs. With its two-stage actuator, you can count on smooth, responsive processing power. In addition, your data and media are secured with a loading ramp design to prevent data loss or drive wear and tear. The P300 is available in capacities up to 6TB.

Use for:
• Desktop workstations
• All-in-one PCs
• Desktop PCs
• External enclosures

  • 3.5" SATA Hard Drive
  • 7200 rpm /5400 rpm
  • 64/128 MB buffer
  • Advanced Format
6 TB 4 TB 3 TB 2 TB 1 TB 500 GB
Colour
Powerful storage
The P300 is ideal for boosting performance for home and office PC applications. Available in storage capacities of up to 6 TB, with fast read and write speeds and a secure design.

Performance alongside reliability

The P300’s dual-stage actuator, available in the 2 TB to 6 TB models, improves positional accuracy, negating the effects on head-track alignment that vibrations can cause. This design makes for more precise, faster read and write speeds, and instant access to your data.

P300

Desktop PC Hard Drive

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

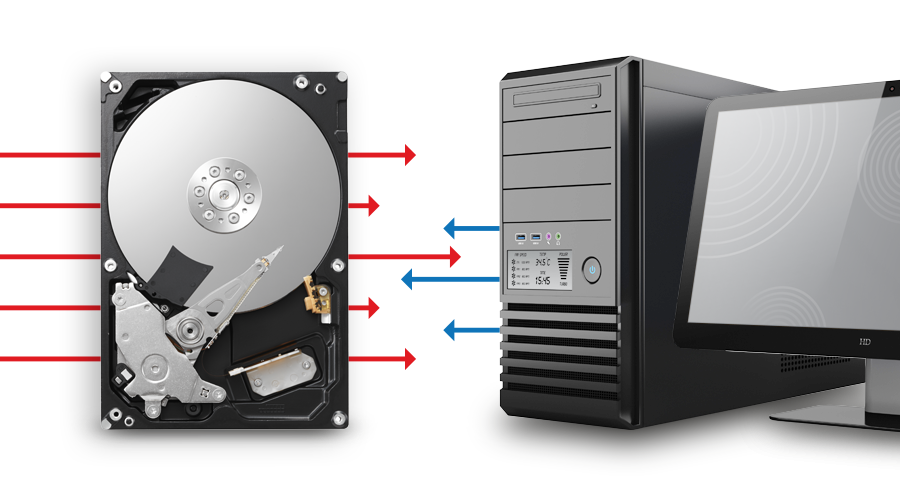

Enhanced access performance

The data read/write access sequence performance is further enhanced through innovative techniques to minimize head movement and disk revolutions. Optimized data access sequence helps improve performance and minimize mechanical workload from the drive.

Keep data secure

The P300’s design includes an internal shock sensor, ensuring no data is lost. In addition, ramp loading technology means that when your hard drive or desktop PC are being transported, the drive slider does not make contact with the disk and risk wearing or data loss.

Built to deliver, designed to last

Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system.

Product Specifications

  • Basic Specifications
  • Form factor

    3.5-inch

  • Interface

    SATA 6.0 Gbit/s)

  • Advanced Format (AF)

    Yes

  • RoHS compatible

    Yes

  • Halogen Free
    Yes
  • Shock Sensor

    Yes

  • Recording Technology

    CMR (500GB- 3TB):
    HDWD130EZSTA, HDWD130UZSVA,
    HDWD120EZSTA, HDWD120UZSVA,
    HDWD110EZSTA, HDWD110UZSVA
    HDWD105UZSVA,

    SMR (2 TB-6 TB):
    HDWD260UZSVA, HDWD240UZSVA, HDWD220UZSVA, HDWD320UZSVA,
    HDWD260EZSTA, HDWD240EZSTA, HDWD220EZSTA, HDWD320EZSTA

  • Performance
  • Rotational speed

    5,400 rpm (2TB - 6 TB SMR)
    7,200 rpm (500 GB - 3 TB CMR, 2 TB SMR HDWD320)

  • Buffer size

    256 MB (2 TB SMR HDWD320),
    128 MB (2TB - 6 TB SMR),
    64 MB (500 GB - 3 TB CMR)

  • Native Command Queing (NCQ)

    supported

  • Reliability
  • Unrecoverable error rate

    1 per 10E14 bits read

  • Load / Unload Cycle

    600.000 (2TB - 6 TB SMR),
    300.000 (500 GB - 3 TB CMR)

  • Power Management
  • Supply voltage

    5VDC (±5%) / 12VDC (±10%)

  • Consumption – Read/Write

    4.46 W typ. (6 TB),
    4.11 W typ. (4 TB),
    7.3 W typ (3 TB),
    5.21 W typ. (2 TB SMR HDWD320),
    4.14 W typ. (2 TB SMR),
    7.3 / 6.7 W typ. (2 TB CMR),
    6.40 W typ. (500 GB, 1 TB)

  • Consumption – Low Power Idle

    2.68 W typ. (6 TB),
    2.32 W typ. (4 TB),
    5.20 W typ. (3 TB),
    2.92 W typ. (2 TB SMR HDWD320),
    2.11 W typ. (2 TB SMR),
    5.2 / 4.40 W typ. (2 TB CMR),
    3.70 W typ. (500 GB, 1 TB)

  • Environmental
  • Temperature (operating / non-operating)

    0 - 60° C / -40 - 65 °C (2TB - 6 TB SMR, 2 TB SMR HDWD320),
    0 - 60° C / -40 - 70 °C (500 GB - 3 TB CMR)

  • Vibration (operating)

    0.50 G (5 - 350 Hz) (2TB - 6 TB SMR, 2 TB SMR HDWD320),
    0.67 G (5 - 500 Hz) (500 GB - 3 TB CMR)

  • Vibration (non-operating)

    1.04 G (2 - 200 Hz) (500 GB - 3 TB CMR)
    3.0 G (5 - 500Hz) (2 TB - 6 TB SMR, 2 TB SMR HDWD320)

  • Shock (operating)

    70 G / 2 ms duration

  • Shock (non-operating)

    300 G (2 ms half sine) (2 TB CMR, 3 TB, 6 TB)
    350 G (2 ms half sine) (500 GB, 1 TB, 2TB SMR, 4 TB, 2 TB SMR HDWD320)

  • Acoustics (idle mode)

    24 dB typ. (6 TB),
    22 dB typ. (4 TB),
    27 dB typ. (2 TB CMR, 3 TB),
    21 dB typ. (2 TB SMR),
    25 dB typ. (500 GB, 1 TB, 2 TB SMR HDWD320)

  • Physical
  • Dimensions

    147 (L) x 101.85 (W) x 26.1 (H) mm

  • Weight (approx.)

    680 g max. (6 TB, 3 TB, 2TB CMR),
    650 g max. (4 TB),
    440 g max. (2 TB SMR)
    450 g max. (500 GB, 1 TB, 2 TB SMR HDWD320)

  • Box Content
  • Box Content

    3.5-inch internal HDD - P300 Desktop PC Hard Drive

Download Datasheet

Product Range

Part number Capacity Color
HDWD260EZSTA (Retail) 6 TB -
HDWD260UZSVA (Bulk) 6 TB -
HDWD240EZSTA (Retail) 4 TB -
HDWD240UZSVA (Bulk) 4 TB -
HDWD130EZSTA (Retail) 3 TB -
HDWD130UZSVA (Bulk) 3 TB -
HDWD120EZSTA (Retail) 2 TB -
HDWD120UZSVA (Bulk) 2 TB -
HDWD220UZSVA (Bulk) 2 TB -
HDWD220EZSTA (Retail) 2 TB -
HDWD320UZSVA (Bulk) 2 TB -
HDWD320EZSTA (Retail) 2 TB -
HDWD110UZSVA (Bulk) 2 TB -
HDWD110EZSTA (Retail) 1 TB -
HDWD105EZSTA (Retail) 1 TB -
HDWD105EZSTA (Retail) 500 GB -
HDWD105UZSVA (Bulk) 500 GB -
